Smart lighting - Kee Tat Innovative Technology Holdings Limited

smart lighting

Smart LED bulb

Watt	Lumen
3W-8W	300lm-1000lm

CRI	CCT
80/90	Warm White 1800K-6000K Tunable White 1800K-6000K RGB+1800K -6000K

Dimming Y/N
Wireless dimming

Protocol
Zigbee/ Matter/ WiFi

Decorative smart bulb

Watt	Lumen
1W-5W	100lm - 400lm

CCT	CRI
1800K-6000K	80

Energy Class	Dimming Y/N
F	Wireless dimming

Protocol
Zigbee/ Matter/ WiFi

LED filament bulb

Watt	Lumen
2W-4W	470lm-806lm

CCT	CRI
1800K-6000K	80/90

Dimming Y/N	Energy Class
Dimmable or non- dimmable Wireless dimming	F

Protocol
Zigbee/ Matter/ WiFi

LED deco bulbs

Watt	Lumen
1W-5W	110lm-270lm

CCT	CRI
1800K-2200K	80/90

Dimming Y/N
N

Smart wall electric plug

Features	P1801	P1802	P1803
Input	120V AC	120V AC	240V AC
Max output current	15A	15A	10A
Max loading	1800W	1800W	3840W
Standby power	<0.3W	<0.3W	<0.3W
Output	2 x 2.4A USB (Total Max: 3.4A)	2 x 2.4A USB (Total Max: 3.4A)	2.4A USB
Wireless solution	Zigbee or Wifi	Zigbee or Wifi	Zigbee or Wifi
Size	100x 74 x 38mm	100x 74 x 38mm	60 x 60 x 35mm
Others	LED light indicator x 2pcs Individual control for each plug Home kit outlet in use compatible Power meter function Two buttons / Two indicators	LED light indicator x 2pcs Home kit outlet in use compatible Individual control for each plug Power meter function Night light 0.6W	Home kit outlet in use compatible A LED indicator A button

Note : Features and specifications may change without prior notice.
Should you require the updated product information please contact ask-kt@keetat.com.hk

Smart light bulb

Features	L1801W09	L1802W05
Wattage	9W	5.2W
Lumen output	806lm @ 2700K	470lm @ 2700K
Efficacy	91lm/W	90lm/W
Beam Angle	220°	220°
CRI	≥ 90	≥ 90
CCT	2700K	2700K
PF	>0.6 (EU); >0.6 (NA)	>0.6 (EU); >0.6 (NA)
Dimmable	Wireless	Wireless
Connectivity	Zigbee or Wifi	Zigbee or WiFi
Dimensions	Φ60*115mm(EU)/112mm(NA)	Φ38*110mm(EU)/106mm(NA)
Others	≤ 0.3W standby power (Zigbee) ≤ 0.5W standby power (Wifi) Lamp: A60	≤ 0.3W standby power ≤ 0.5W standby power (Wifi) Lamp: B38

Note : Features and specifications may change without prior notice.
Should you require the updated product information please contact ask-kt@keetat.com.hk

Under cabinet rectangular linear light

Features	UC-L-40
Lamp Shape	Linear
Driver	External
Wattage (W)	6W
Voltage (V)	12V
Average Lifetime (Hrs)	15000
Lumen (Lm)	450 lm
CCT (K)	2700K / 4000K / 6500K
CRI (Ra)	80Ra
Beam Angle (degree)	145°
Dimmability	Dimmable / Non-dimmable / RGB
Size (DxL) mm	L400mm x W40mm x H16mm

Note : Features and specifications may change without prior notice.
Should you require the updated product information please contact ask-kt@keetat.com.hk

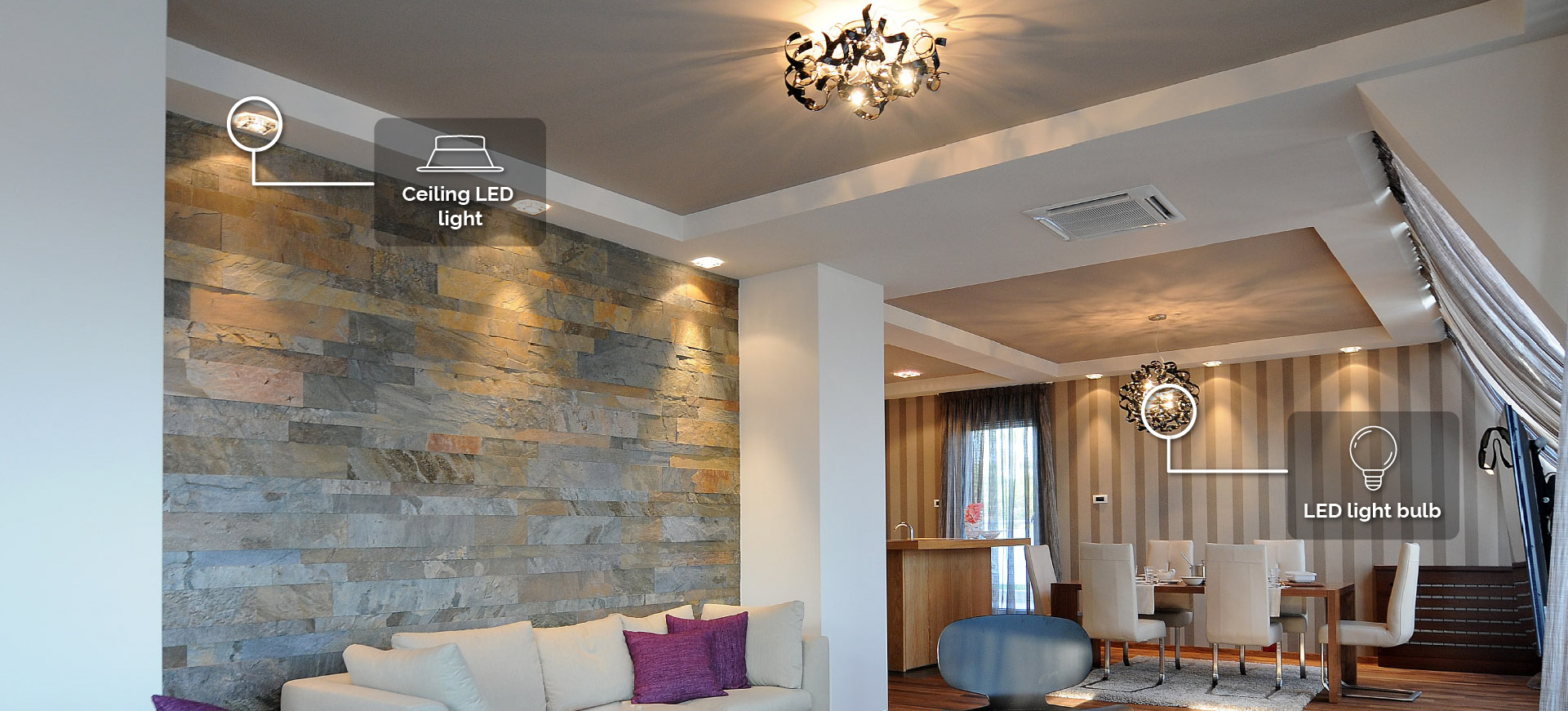

Ceiling LED light

Ceiling LED lights	DL-EU001-6W-XX-YY	DL-EU001-8W-XX-YY	DL-EU001-12W-XX-YY
Voltage	220-240V	220-240V	220-240V
Wattage	6W	8W	12W
Lumen (Lm)	400lm	600lm	900lm
Beam angle (degrees)	110°	110°	110°
CCT (K) XX	3000K / 6000K WW / CW	3000K / 6000K WW / CW	3000K / 6000K WW / CW
CRI (Ra)	80Ra	80Ra	80Ra
Housing	Aluminium	Aluminium	Aluminium
IP rating	IP20 / IP44	IP20 / IP44	IP20 / IP44
Average lifetime (hrs)	30000	30000	30000
Cutout (mm)	Cutout 92	Cutout 123	Cutout 164
Dia (mm)	Φ105	Φ145	Φ190
H (mm)	55	64	77
Diriver	Integrated power supply	Integrated power supply	Integrated power supply
Option YY	00 Basic on/off 01 3-step switch dim 02 Switch change CCT 03 Phase dim 04 Remote control	00 Basic on/off 01 3-step switch dim 02 Switch change CCT 03 Phase dim」 04 Remote control	00 Basic on/off 01 3-step switch dim 02 Switch change CCT 03 Phase dim 04 Remote control

Note : Features and specifications may change without prior notice.
Should you require the updated product information please contact ask-kt@keetat.com.hk

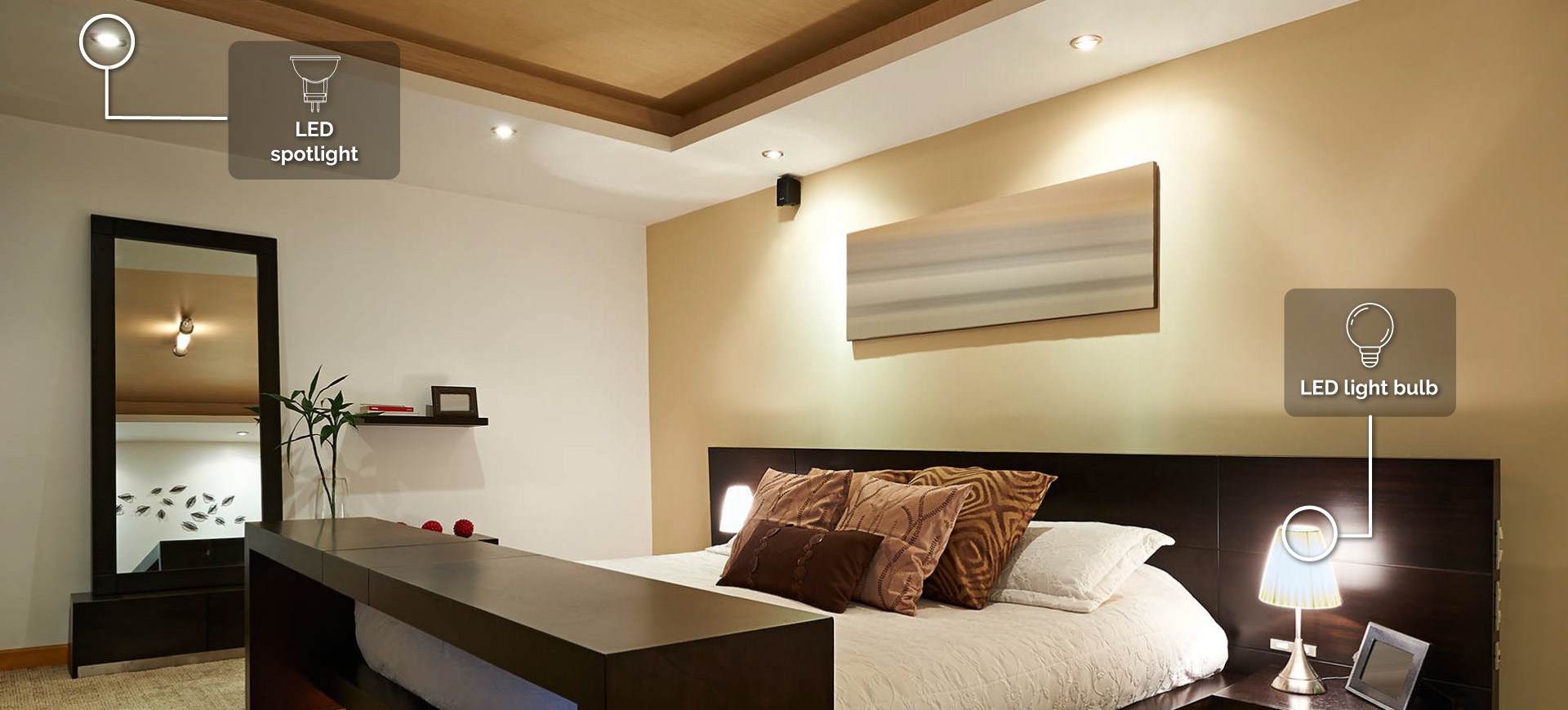

LED spotlight

Features	GU10PAR16-GL-8D/N-WW38	GU10PAR16-GL-8D/N-WW38
Lamp Shape	PAR16	PAR16
Wattage (W)	7.5W	7.5W
Voltage (V)	100-120V	220-240V
Average lifetime (Hrs)	15000	15000
Lamp Base	GU10	GU10
Replacement Wattage (W)	50W	50W
Lumen (Lm)	500lm	500lm
Candela (Cd)	700 Dd	700 Dd
CCT (K)	2700k / 3000k	2700k / 3000k
CRI (Ra)	80Ra	80Ra
Beam angle (degrees)	38°	38°
Dimmability	Dimmable / Non-Dimmable	Dimmable / Non-Dimmable
Size (DxL)mm	Φ50 x 53.5mm	Φ50 x 53.5mm

Note : Features and specifications may change without prior notice.
Should you require the updated product information please contact ask-kt@keetat.com.hk

LED light bulb

Features	E26A19-9D/N-WW/NW/CW230	E27A60-9D/N-WW/NW/CW230
Lamp Shape	Shape - A Bulb	Shape - A Bulb
Wattage (W)	8.5W	8.5W
Voltage (V)	100-120V	220-240V
Average lifetime (Hrs)	15000	15000
Lamp Base	E26	E27
Replacement Wattage (W)	60W	60W
Lumen (Lm)	800lm / 800lm / 850lm	800lm / 800lm / 850lm
CCT (K)	2700K / 4000K / 6500K	2700K / 4000K / 6500K
CRI (Ra)	80Ra	80Ra
Beam angle (degrees)	230°	230°
Dimmability	Dimmable / Non-Dimmable	Dimmable / Non-Dimmable
Size (DxL)mm	Φ60 x 110mm	Φ60 x 112mm

Note : Features and specifications may change without prior notice.
Should you require the updated product information please contact ask-kt@keetat.com.hk

LED strip light

Features	UC-S
Lamp Shape	Strip
Driver	External
Wattage (W)	5W
Voltage (V)	12V
Average Lifetime (Hrs)	15000
Lumen (Lm)	250 lm / meter
CCT (K)	2700K / 4000K / 6500K
CRI (Ra)	80Ra
Beam Angle (degree)	110°
Dimmability	Dimmable / Non-dimmable / RGB

Note : Features and specifications may change without prior notice.
Should you require the updated product information please contact ask-kt@keetat.com.hk

LED light bulb for appliances

Features	E26P45-6D/N-WW/NW/CW250	E27P45-6D/N-WW/NW/CW250
Lamp Shape	P45 Bulb (Frost)	P45 Bulb (Frost)
Wattage (W)	6W	6W
Voltage (V)	100-120V	220-240V
Average lifetime (Hrs)	15000	15000
Lamp Base	E26	E27
Replacement Wattage (W)	40W	40W
Lumen (Lm)	470lm / 500lm / 550lm	470lm / 500lm / 550lm
CCT (K)	2700K / 4000K / 6500K	2700K / 4000K / 6500K
CRI (Ra)	80Ra	80Ra
Beam angle (degrees)	200°	200°
Dimmability	Dimmable / Non-Dimmable	Dimmable / Non-Dimmable
Size (DxL)mm	Φ45 x 70mm	Φ45 x 72mm

Note : Features and specifications may change without prior notice.
Should you require the updated product information please contact ask-kt@keetat.com.hk

Smart curtain opening

Features	C1801	C1802	C1803	C1804
Type	Wireless Cellar Blind	Wireless Open Close Curtain	Wireless Open Close Curtain	Wireless Open Close Curtain
Power Method	AC / Battery / Solar	AC / Battery / Solar	AC / Battery / Solar	AC / Battery / Solar
Connectivity	Wi-Fi or Zigbee	Wi-Fi or Zigbee	Wi-Fi or Zigbee	Wi-Fi or Zigbee
Features	No accessible lifting cord	No accessible lifting cord	No accessible lifting cord	No accessible lifting cord
	Lowest level adjustable	Close limit adjustable	Close limit adjustable	Close limit adjustable
Control	Remote, APP	Remote, APP	Remote, APP	Remote, APP
Width	From 60cm to 120cm	From 60cm to 120cm	From 60cm to 120cm	From 60cm to 120cm

Note : Features and specifications may change without prior notice.
Should you require the updated product information please contact ask-kt@keetat.com.hk

Smart electric plug strip

Features	P1804	P1805
Input	120V AC	120V AC
Max loading	1800W	1800W
Standby power	<0.3W	<0.3W
Outlets	3 (Individual control)	3 (Individual control)
Output	3 x 2.4A USB (Total Max: 3.4A)	USB type C (PD3.0, Max 45W)
Wireless solution	Zigbee or Wifi	Zigbee or Wifi
Size	320 x 60 x 30mm	320 x 60 x 30mm
Length of cord	2, 6, 12 ft	2, 6, 12 ft
Others	Each outlet and USB be controlled individually With 15A circuit breaker Power meter function Power button Home kit outlet in use compatible	Each outlet and USB be controlled individually With 15A circuit breaker Power meter function Power button Home kit outlet in use compatible

Note : Features and specifications may change without prior notice.
Should you require the updated product information please contact ask-kt@keetat.com.hk

Smart water leakage sensor

RS1803
Water leakage sensor
Battery powered
2xAA
Battery life time: 1 year
Alarm embedded
Wifi or Zigbee connectivity
Size: 50 x 45 x 20mm

Note : Features and specifications may change without prior notice.
Should you require the updated product information please contact ask-kt@keetat.com.hk

TW Ceiling light speaker

TW Ceiling Light Speaker
Features	Unique enclosure structure design to create optimal sound performance TWS pairing system With APP to control light and music features Easy to install and set up IPX4
Specifications	Bluetooth 5.0 Output power : 8W x 2 Driver size : 1.75" x 2.4ohm External power supply Power consumption : 220 - 240V, 50/60Hz Dproduct dimension : 200mm x 200mm x 75mm Product dimension (with clip) : 216mm x 216mm x 75mm Optional : Aluminum decorating ring

Note : Features and specifications may change without prior notice.
Should you require the updated product information please contact ask-kt@keetat.com.hk

Smart Qi Alexa speaker

Smart Qi Alexa Speaker
Features	Far field voice recognition Qi wireless charging Clock and alarm clock display Touching ring for functional control USB device charging
Specifications	Output power : 5W x 2 Driver size : 2" x 2, 8ohm With passive radiator External power supply Power consumption : 100-240V, 50/60Hz Product dimension : 216mm x 106mm x 100mm Optional wooden cabinet

Note : Features and specifications may change without prior notice.
Should you require the updated product information please contact ask-kt@keetat.com.hk

Lamp speakers

Lamp Speakers
Features	TWS paring system Lighting : RGB IPX5 Lighting and acoustic functions for both indoor and outdoor
Specifications	Bluetooth version 4.0 Driver : 3" Power : 20W RMS Input : 3.5mm line-in Built-in Rechargeable battery : 7.4V/2200mAh Charging time : 3 Hours Working time : 6 hours with both light and speaker on Dimension (diameter x height) : 260mm x 400mm

Note : Features and specifications may change without prior notice.
Should you require the updated product information please contact ask-kt@keetat.com.hk
