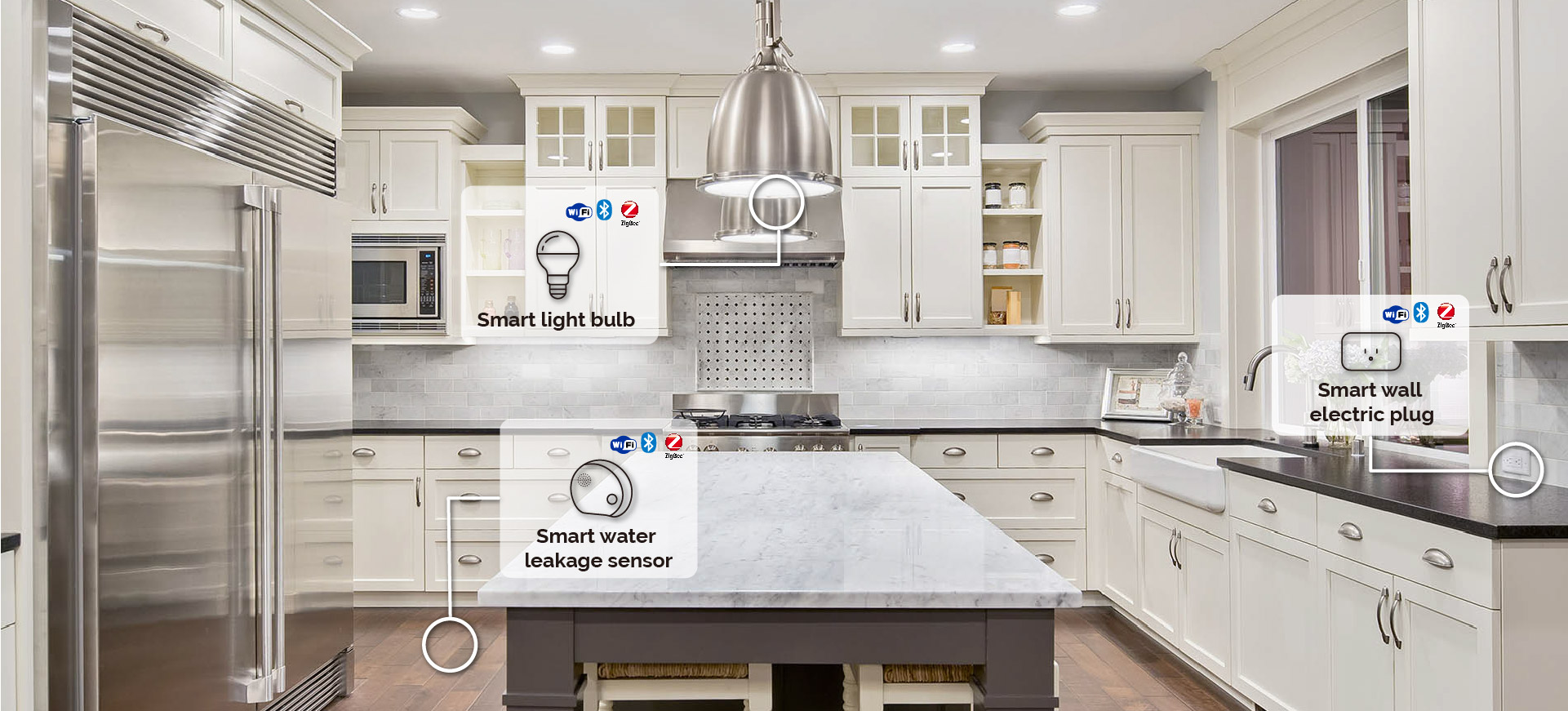

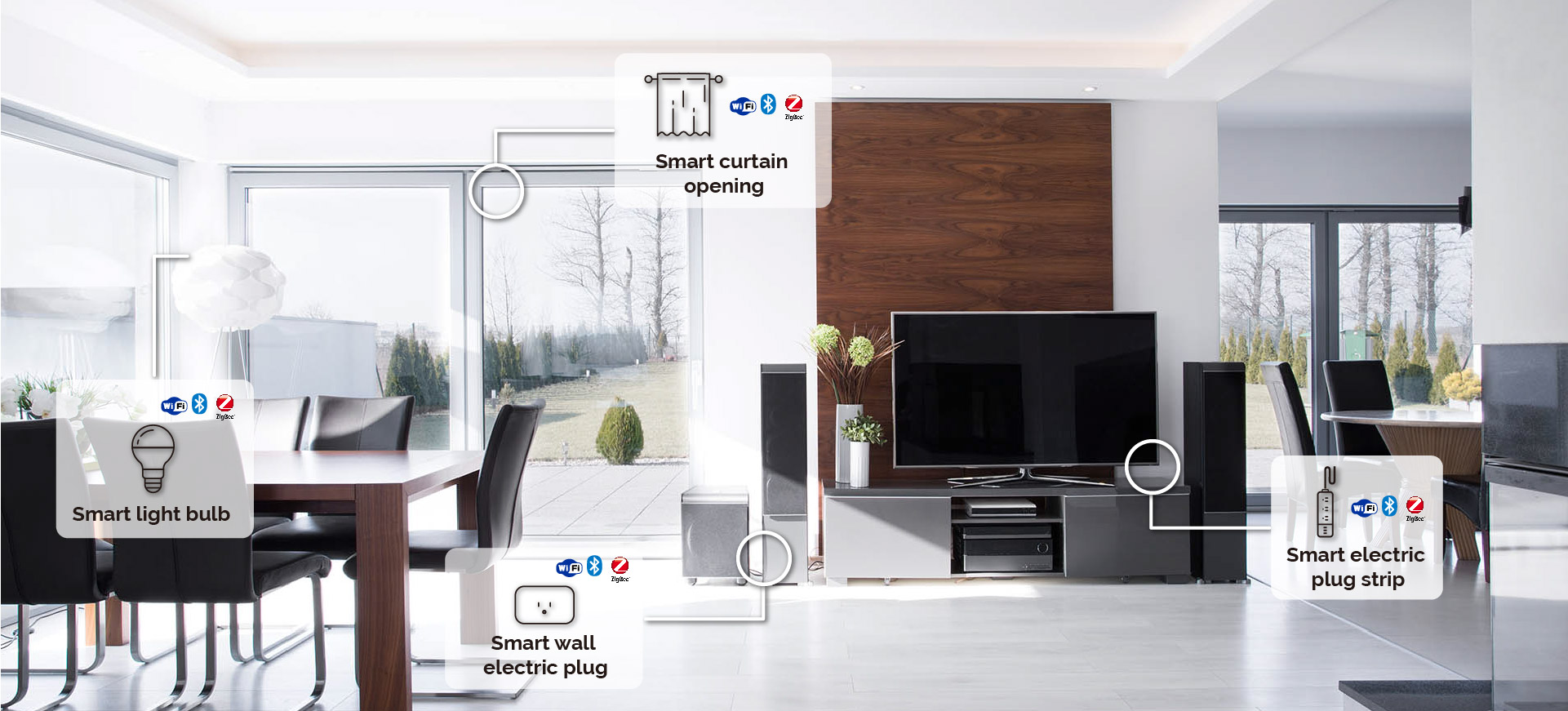

試想想當你遠離家居，但需要控制你家中的燈具、電器產品的電源、開/關你家中的窗口百葉簾、想知道大門有沒有關好、有沒有發生漏水問題、或者想知道你家中目前的狀況，健達能為你提供一個完善的家居安穏方案。
我們對智能家居產品的發展，將永不停步。
Just imagine when you are away from home but want to turn off/on your home lighting, appliances’ power, to close or open window blind, to know if your door is opened, if there is a water leaking problem, or what’s happening of your home now and so on, Kee Tat provides a comprehensive peace-of-mind solution to major electrical and home furnishing retailers, smart homes products brands, and system integrators.
Our innovations on Smart Home products never end.
| Product name: | M01 – Connectivity module |
| SoC: | Espressif ESP32-C2 |
| Protocol: | Matter over Wifi |
| Dimension: | 15.5 x 18 mm |
| Working voltage: | 3V-3.6V |
| Max RF power: | +20dBm |
| WiFi: | 802.11b/g/n |
| Antenna: | On board antenna |
| Operatinig temperature: | -20°C to 85°C |
| Product name: | M02 – Connectivity module |
| SoC: | Espressif ESP32-C2 |
| Protocol: | Matter over Wifi |
| Dimension: | 12.7 x 8.5 mm |
| Working voltage: | |
| Max RF power: | |
| WiFi: | |
| Antenna: | Chip Antenna |
| Operatinig temperature: |
| Features | P1801 | P1802 | P1803 |
|---|---|---|---|
| Input | 120V AC | 120V AC | 240V AC |
| Max output current | 15A | 15A | 10A |
| Max loading | 1800W | 1800W | 3840W |
| Standby power | <0.3W | <0.3W | <0.3W |
| Output | 2 x 2.4A USB (Total Max: 3.4A) | 2 x 2.4A USB (Total Max: 3.4A) | 2.4A USB |
| Wireless solution | Zigbee or Wifi | Zigbee or Wifi | Zigbee or Wifi |
| Size | 100x 74 x 38mm | 100x 74 x 38mm | 60 x 60 x 35mm |
| Others | LED light indicator x 2pcs Individual control for each plug Home kit outlet in use compatible Power meter function Two buttons / Two indicators | LED light indicator x 2pcs Home kit outlet in use compatible Individual control for each plug Power meter function Night light 0.6W | Home kit outlet in use compatible A LED indicator A button |
| Features | L1801W09 | L1802W05 |
|---|---|---|
| Wattage | 9W | 5.2W |
| Lumen output | 806lm @ 2700K | 470lm @ 2700K |
| Efficacy | 91lm/W | 90lm/W |
| Beam Angle | 220° | 220° |
| CRI | ≥ 90 | ≥ 90 |
| CCT | 2700K | 2700K |
| PF | >0.6 (EU); >0.6 (NA) | >0.6 (EU); >0.6 (NA) |
| Dimmable | Wireless | Wireless |
| Connectivity | Zigbee or Wifi | Zigbee or WiFi |
| Dimensions | Φ60*115mm(EU)/112mm(NA) | Φ38*110mm(EU)/106mm(NA) |
| Others | ≤ 0.3W standby power (Zigbee) ≤ 0.5W standby power (Wifi) Lamp: A60 | ≤ 0.3W standby power ≤ 0.5W standby power (Wifi) Lamp: B38 |
| Features | UC-L-40 |
|---|---|
| Lamp Shape | Linear |
| Driver | External |
| Wattage (W) | 6W |
| Voltage (V) | 12V |
| Average Lifetime (Hrs) | 15000 |
| Lumen (Lm) | 450 lm |
| CCT (K) | 2700K / 4000K / 6500K |
| CRI (Ra) | 80Ra |
| Beam Angle (degree) | 145° |
| Dimmability | Dimmable / Non-dimmable / RGB |
| Size (DxL) mm | L400mm x W40mm x H16mm |
| Ceiling LED lights | DL-EU001-6W-XX-YY | DL-EU001-8W-XX-YY | DL-EU001-12W-XX-YY |
|---|---|---|---|
| Voltage | 220-240V | 220-240V | 220-240V |
| Wattage | 6W | 8W | 12W |
| Lumen (Lm) | 400lm | 600lm | 900lm |
| Beam angle (degrees) | 110° | 110° | 110° |
| CCT (K) XX | 3000K / 6000K WW / CW | 3000K / 6000K WW / CW | 3000K / 6000K WW / CW |
| CRI (Ra) | 80Ra | 80Ra | 80Ra |
| Housing | Aluminium | Aluminium | Aluminium |
| IP rating | IP20 / IP44 | IP20 / IP44 | IP20 / IP44 |
| Average lifetime (hrs) | 30000 | 30000 | 30000 |
| Cutout (mm) | Cutout 92 | Cutout 123 | Cutout 164 |
| Dia (mm) | Φ105 | Φ145 | Φ190 |
| H (mm) | 55 | 64 | 77 |
| Diriver | Integrated power supply | Integrated power supply | Integrated power supply |
| Option YY | 00 Basic on/off 01 3-step switch dim 02 Switch change CCT 03 Phase dim 04 Remote control | 00 Basic on/off 01 3-step switch dim 02 Switch change CCT 03 Phase dim」 04 Remote control | 00 Basic on/off 01 3-step switch dim 02 Switch change CCT 03 Phase dim 04 Remote control |
| Features | GU10PAR16-GL-8D/N-WW38 | GU10PAR16-GL-8D/N-WW38 |
|---|---|---|
| Lamp Shape | PAR16 | PAR16 |
| Wattage (W) | 7.5W | 7.5W |
| Voltage (V) | 100-120V | 220-240V |
| Average lifetime (Hrs) | 15000 | 15000 |
| Lamp Base | GU10 | GU10 |
| Replacement Wattage (W) | 50W | 50W |
| Lumen (Lm) | 500lm | 500lm |
| Candela (Cd) | 700 Dd | 700 Dd |
| CCT (K) | 2700k / 3000k | 2700k / 3000k |
| CRI (Ra) | 80Ra | 80Ra |
| Beam angle (degrees) | 38° | 38° |
| Dimmability | Dimmable / Non-Dimmable | Dimmable / Non-Dimmable |
| Size (DxL)mm | Φ50 x 53.5mm | Φ50 x 53.5mm |
| Features | E26A19-9D/N-WW/NW/CW230 | E27A60-9D/N-WW/NW/CW230 |
|---|---|---|
| Lamp Shape | Shape - A Bulb | Shape - A Bulb |
| Wattage (W) | 8.5W | 8.5W |
| Voltage (V) | 100-120V | 220-240V |
| Average lifetime (Hrs) | 15000 | 15000 |
| Lamp Base | E26 | E27 |
| Replacement Wattage (W) | 60W | 60W |
| Lumen (Lm) | 800lm / 800lm / 850lm | 800lm / 800lm / 850lm |
| CCT (K) | 2700K / 4000K / 6500K | 2700K / 4000K / 6500K |
| CRI (Ra) | 80Ra | 80Ra |
| Beam angle (degrees) | 230° | 230° |
| Dimmability | Dimmable / Non-Dimmable | Dimmable / Non-Dimmable |
| Size (DxL)mm | Φ60 x 110mm | Φ60 x 112mm |
| Features | UC-S |
|---|---|
| Lamp Shape | Strip |
| Driver | External |
| Wattage (W) | 5W |
| Voltage (V) | 12V |
| Average Lifetime (Hrs) | 15000 |
| Lumen (Lm) | 250 lm / meter |
| CCT (K) | 2700K / 4000K / 6500K |
| CRI (Ra) | 80Ra |
| Beam Angle (degree) | 110° |
| Dimmability | Dimmable / Non-dimmable / RGB |
| Features | E26P45-6D/N-WW/NW/CW250 | E27P45-6D/N-WW/NW/CW250 |
|---|---|---|
| Lamp Shape | P45 Bulb (Frost) | P45 Bulb (Frost) |
| Wattage (W) | 6W | 6W |
| Voltage (V) | 100-120V | 220-240V |
| Average lifetime (Hrs) | 15000 | 15000 |
| Lamp Base | E26 | E27 |
| Replacement Wattage (W) | 40W | 40W |
| Lumen (Lm) | 470lm / 500lm / 550lm | 470lm / 500lm / 550lm |
| CCT (K) | 2700K / 4000K / 6500K | 2700K / 4000K / 6500K |
| CRI (Ra) | 80Ra | 80Ra |
| Beam angle (degrees) | 200° | 200° |
| Dimmability | Dimmable / Non-Dimmable | Dimmable / Non-Dimmable |
| Size (DxL)mm | Φ45 x 70mm | Φ45 x 72mm |
| Features | C1801 | C1802 | C1803 | C1804 |
|---|---|---|---|---|
| Type | Wireless Cellar Blind | Wireless Open Close Curtain | Wireless Open Close Curtain | Wireless Open Close Curtain |
| Power Method | AC / Battery / Solar | AC / Battery / Solar | AC / Battery / Solar | AC / Battery / Solar |
| Connectivity | Wi-Fi or Zigbee | Wi-Fi or Zigbee | Wi-Fi or Zigbee | Wi-Fi or Zigbee |
| Features | No accessible lifting cord | No accessible lifting cord | No accessible lifting cord | No accessible lifting cord |
| Lowest level adjustable | Close limit adjustable | Close limit adjustable | Close limit adjustable | |
| Control | Remote, APP | Remote, APP | Remote, APP | Remote, APP |
| Width | From 60cm to 120cm | From 60cm to 120cm | From 60cm to 120cm | From 60cm to 120cm |
| Features | P1804 | P1805 |
|---|---|---|
| Input | 120V AC | 120V AC |
| Max loading | 1800W | 1800W |
| Standby power | <0.3W | <0.3W |
| Outlets | 3 (Individual control) | 3 (Individual control) |
| Output | 3 x 2.4A USB (Total Max: 3.4A) | USB type C (PD3.0, Max 45W) |
| Wireless solution | Zigbee or Wifi | Zigbee or Wifi |
| Size | 320 x 60 x 30mm | 320 x 60 x 30mm |
| Length of cord | 2, 6, 12 ft | 2, 6, 12 ft |
| Others | Each outlet and USB be controlled individually With 15A circuit breaker Power meter function Power button Home kit outlet in use compatible | Each outlet and USB be controlled individually With 15A circuit breaker Power meter function Power button Home kit outlet in use compatible |
| RS1803 |
|---|
| Water leakage sensor |
| Battery powered |
| 2xAA |
| Battery life time: 1 year |
| Alarm embedded |
| Wifi or Zigbee connectivity |
| Size: 50 x 45 x 20mm |
| TW Ceiling Light Speaker | |
|---|---|
| Features | Unique enclosure structure design to create optimal sound performance TWS pairing system With APP to control light and music features Easy to install and set up IPX4 |
| Specifications | Bluetooth 5.0 Output power : 8W x 2 Driver size : 1.75" x 2.4ohm External power supply Power consumption : 220 - 240V, 50/60Hz Dproduct dimension : 200mm x 200mm x 75mm Product dimension (with clip) : 216mm x 216mm x 75mm Optional : Aluminum decorating ring |
| Smart Qi Alexa Speaker | |
|---|---|
| Features | Far field voice recognition Qi wireless charging Clock and alarm clock display Touching ring for functional control USB device charging |
| Specifications | Output power : 5W x 2 Driver size : 2" x 2, 8ohm With passive radiator External power supply Power consumption : 100-240V, 50/60Hz Product dimension : 216mm x 106mm x 100mm Optional wooden cabinet |
| Lamp Speakers | |
|---|---|
| Features | TWS paring system Lighting : RGB IPX5 Lighting and acoustic functions for both indoor and outdoor |
| Specifications | Bluetooth version 4.0 Driver : 3" Power : 20W RMS Input : 3.5mm line-in Built-in Rechargeable battery : 7.4V/2200mAh Charging time : 3 Hours Working time : 6 hours with both light and speaker on Dimension (diameter x height) : 260mm x 400mm |
