All deserves a relaxing moment and listen to your favorite music when you return home after a long day. Or, you want to invite your friends to a party in your backyard, and dance along with stunning music.
Kee Tat provides various audio entertainment solutions to major audio brands, home furnishing companies, and system integrators with high quality in audio performance and style, so that families can enjoy music anywhere at their home.
Our innovations on audio products never end.
| Product name: | M01 – Connectivity module |
| SoC: | Espressif ESP32-C2 |
| Protocol: | Matter over Wifi |
| Dimension: | 15.5 x 18 mm |
| Working voltage: | 3V-3.6V |
| Max RF power: | +20dBm |
| WiFi: | 802.11b/g/n |
| Bluetooth: | Bluetooth 4.2 Low Energy |
| Antenna: | On board antenna |
| Operatinig temperature: | -20°C to 85°C |
| Product name: | M02 – Connectivity module |
| SoC: | Espressif ESP32-C2 |
| Protocol: | Matter over Wifi |
| Dimension: | 12.7 x 8.5 mm |
| Working voltage: | |
| Max RF power: | |
| WiFi: | |
| Bluetooth: | |
| Antenna: | Chip Antenna |
| Operatinig temperature: |
| Features | P1801 | P1802 | P1803 |
|---|---|---|---|
| Input | 120V AC | 120V AC | 240V AC |
| Max output current | 15A | 15A | 10A |
| Max loading | 1800W | 1800W | 3840W |
| Standby power | <0.3W | <0.3W | <0.3W |
| Output | 2 x 2.4A USB (Total Max: 3.4A) | 2 x 2.4A USB (Total Max: 3.4A) | 2.4A USB |
| Wireless solution | Zigbee or Wifi | Zigbee or Wifi | Zigbee or Wifi |
| Size | 100x 74 x 38mm | 100x 74 x 38mm | 60 x 60 x 35mm |
| Others | LED light indicator x 2pcs Individual control for each plug Home kit outlet in use compatible Power meter function Two buttons / Two indicators | LED light indicator x 2pcs Home kit outlet in use compatible Individual control for each plug Power meter function Night light 0.6W | Home kit outlet in use compatible A LED indicator A button |
| Features | L1801W09 | L1802W05 |
|---|---|---|
| Wattage | 9W | 5.2W |
| Lumen output | 806lm @ 2700K | 470lm @ 2700K |
| Efficacy | 91lm/W | 90lm/W |
| Beam Angle | 220° | 220° |
| CRI | ≥ 90 | ≥ 90 |
| CCT | 2700K | 2700K |
| PF | >0.6 (EU); >0.6 (NA) | >0.6 (EU); >0.6 (NA) |
| Dimmable | Wireless | Wireless |
| Connectivity | Zigbee or Wifi | Zigbee or WiFi |
| Dimensions | Φ60*115mm(EU)/112mm(NA) | Φ38*110mm(EU)/106mm(NA) |
| Others | ≤ 0.3W standby power (Zigbee) ≤ 0.5W standby power (Wifi) Lamp: A60 | ≤ 0.3W standby power ≤ 0.5W standby power (Wifi) Lamp: B38 |
| Features | UC-L-40 |
|---|---|
| Lamp Shape | Linear |
| Driver | External |
| Wattage (W) | 6W |
| Voltage (V) | 12V |
| Average Lifetime (Hrs) | 15000 |
| Lumen (Lm) | 450 lm |
| CCT (K) | 2700K / 4000K / 6500K |
| CRI (Ra) | 80Ra |
| Beam Angle (degree) | 145° |
| Dimmability | Dimmable / Non-dimmable / RGB |
| Size (DxL) mm | L400mm x W40mm x H16mm |
| Ceiling LED lights | DL-EU001-6W-XX-YY | DL-EU001-8W-XX-YY | DL-EU001-12W-XX-YY |
|---|---|---|---|
| Voltage | 220-240V | 220-240V | 220-240V |
| Wattage | 6W | 8W | 12W |
| Lumen (Lm) | 400lm | 600lm | 900lm |
| Beam angle (degrees) | 110° | 110° | 110° |
| CCT (K) XX | 3000K / 6000K WW / CW | 3000K / 6000K WW / CW | 3000K / 6000K WW / CW |
| CRI (Ra) | 80Ra | 80Ra | 80Ra |
| Housing | Aluminium | Aluminium | Aluminium |
| IP rating | IP20 / IP44 | IP20 / IP44 | IP20 / IP44 |
| Average lifetime (hrs) | 30000 | 30000 | 30000 |
| Cutout (mm) | Cutout 92 | Cutout 123 | Cutout 164 |
| Dia (mm) | Φ105 | Φ145 | Φ190 |
| H (mm) | 55 | 64 | 77 |
| Diriver | Integrated power supply | Integrated power supply | Integrated power supply |
| Option YY | 00 Basic on/off 01 3-step switch dim 02 Switch change CCT 03 Phase dim 04 Remote control | 00 Basic on/off 01 3-step switch dim 02 Switch change CCT 03 Phase dim」 04 Remote control | 00 Basic on/off 01 3-step switch dim 02 Switch change CCT 03 Phase dim 04 Remote control |
| Features | GU10PAR16-GL-8D/N-WW38 | GU10PAR16-GL-8D/N-WW38 |
|---|---|---|
| Lamp Shape | PAR16 | PAR16 |
| Wattage (W) | 7.5W | 7.5W |
| Voltage (V) | 100-120V | 220-240V |
| Average lifetime (Hrs) | 15000 | 15000 |
| Lamp Base | GU10 | GU10 |
| Replacement Wattage (W) | 50W | 50W |
| Lumen (Lm) | 500lm | 500lm |
| Candela (Cd) | 700 Dd | 700 Dd |
| CCT (K) | 2700k / 3000k | 2700k / 3000k |
| CRI (Ra) | 80Ra | 80Ra |
| Beam angle (degrees) | 38° | 38° |
| Dimmability | Dimmable / Non-Dimmable | Dimmable / Non-Dimmable |
| Size (DxL)mm | Φ50 x 53.5mm | Φ50 x 53.5mm |
| Features | E26A19-9D/N-WW/NW/CW230 | E27A60-9D/N-WW/NW/CW230 |
|---|---|---|
| Lamp Shape | Shape - A Bulb | Shape - A Bulb |
| Wattage (W) | 8.5W | 8.5W |
| Voltage (V) | 100-120V | 220-240V |
| Average lifetime (Hrs) | 15000 | 15000 |
| Lamp Base | E26 | E27 |
| Replacement Wattage (W) | 60W | 60W |
| Lumen (Lm) | 800lm / 800lm / 850lm | 800lm / 800lm / 850lm |
| CCT (K) | 2700K / 4000K / 6500K | 2700K / 4000K / 6500K |
| CRI (Ra) | 80Ra | 80Ra |
| Beam angle (degrees) | 230° | 230° |
| Dimmability | Dimmable / Non-Dimmable | Dimmable / Non-Dimmable |
| Size (DxL)mm | Φ60 x 110mm | Φ60 x 112mm |
| Features | UC-S |
|---|---|
| Lamp Shape | Strip |
| Driver | External |
| Wattage (W) | 5W |
| Voltage (V) | 12V |
| Average Lifetime (Hrs) | 15000 |
| Lumen (Lm) | 250 lm / meter |
| CCT (K) | 2700K / 4000K / 6500K |
| CRI (Ra) | 80Ra |
| Beam Angle (degree) | 110° |
| Dimmability | Dimmable / Non-dimmable / RGB |
| Features | E26P45-6D/N-WW/NW/CW250 | E27P45-6D/N-WW/NW/CW250 |
|---|---|---|
| Lamp Shape | P45 Bulb (Frost) | P45 Bulb (Frost) |
| Wattage (W) | 6W | 6W |
| Voltage (V) | 100-120V | 220-240V |
| Average lifetime (Hrs) | 15000 | 15000 |
| Lamp Base | E26 | E27 |
| Replacement Wattage (W) | 40W | 40W |
| Lumen (Lm) | 470lm / 500lm / 550lm | 470lm / 500lm / 550lm |
| CCT (K) | 2700K / 4000K / 6500K | 2700K / 4000K / 6500K |
| CRI (Ra) | 80Ra | 80Ra |
| Beam angle (degrees) | 200° | 200° |
| Dimmability | Dimmable / Non-Dimmable | Dimmable / Non-Dimmable |
| Size (DxL)mm | Φ45 x 70mm | Φ45 x 72mm |
| Features | C1801 | C1802 | C1803 | C1804 |
|---|---|---|---|---|
| Type | Wireless Cellar Blind | Wireless Open Close Curtain | Wireless Open Close Curtain | Wireless Open Close Curtain |
| Power Method | AC / Battery / Solar | AC / Battery / Solar | AC / Battery / Solar | AC / Battery / Solar |
| Connectivity | Wi-Fi or Zigbee | Wi-Fi or Zigbee | Wi-Fi or Zigbee | Wi-Fi or Zigbee |
| Features | No accessible lifting cord | No accessible lifting cord | No accessible lifting cord | No accessible lifting cord |
| Lowest level adjustable | Close limit adjustable | Close limit adjustable | Close limit adjustable | |
| Control | Remote, APP | Remote, APP | Remote, APP | Remote, APP |
| Width | From 60cm to 120cm | From 60cm to 120cm | From 60cm to 120cm | From 60cm to 120cm |
| Features | P1804 | P1805 |
|---|---|---|
| Input | 120V AC | 120V AC |
| Max loading | 1800W | 1800W |
| Standby power | <0.3W | <0.3W |
| Outlets | 3 (Individual control) | 3 (Individual control) |
| Output | 3 x 2.4A USB (Total Max: 3.4A) | USB type C (PD3.0, Max 45W) |
| Wireless solution | Zigbee or Wifi | Zigbee or Wifi |
| Size | 320 x 60 x 30mm | 320 x 60 x 30mm |
| Length of cord | 2, 6, 12 ft | 2, 6, 12 ft |
| Others | Each outlet and USB be controlled individually With 15A circuit breaker Power meter function Power button Home kit outlet in use compatible | Each outlet and USB be controlled individually With 15A circuit breaker Power meter function Power button Home kit outlet in use compatible |
| RS1803 |
|---|
| Water leakage sensor |
| Battery powered |
| 2xAA |
| Battery life time: 1 year |
| Alarm embedded |
| Wifi or Zigbee connectivity |
| Size: 50 x 45 x 20mm |

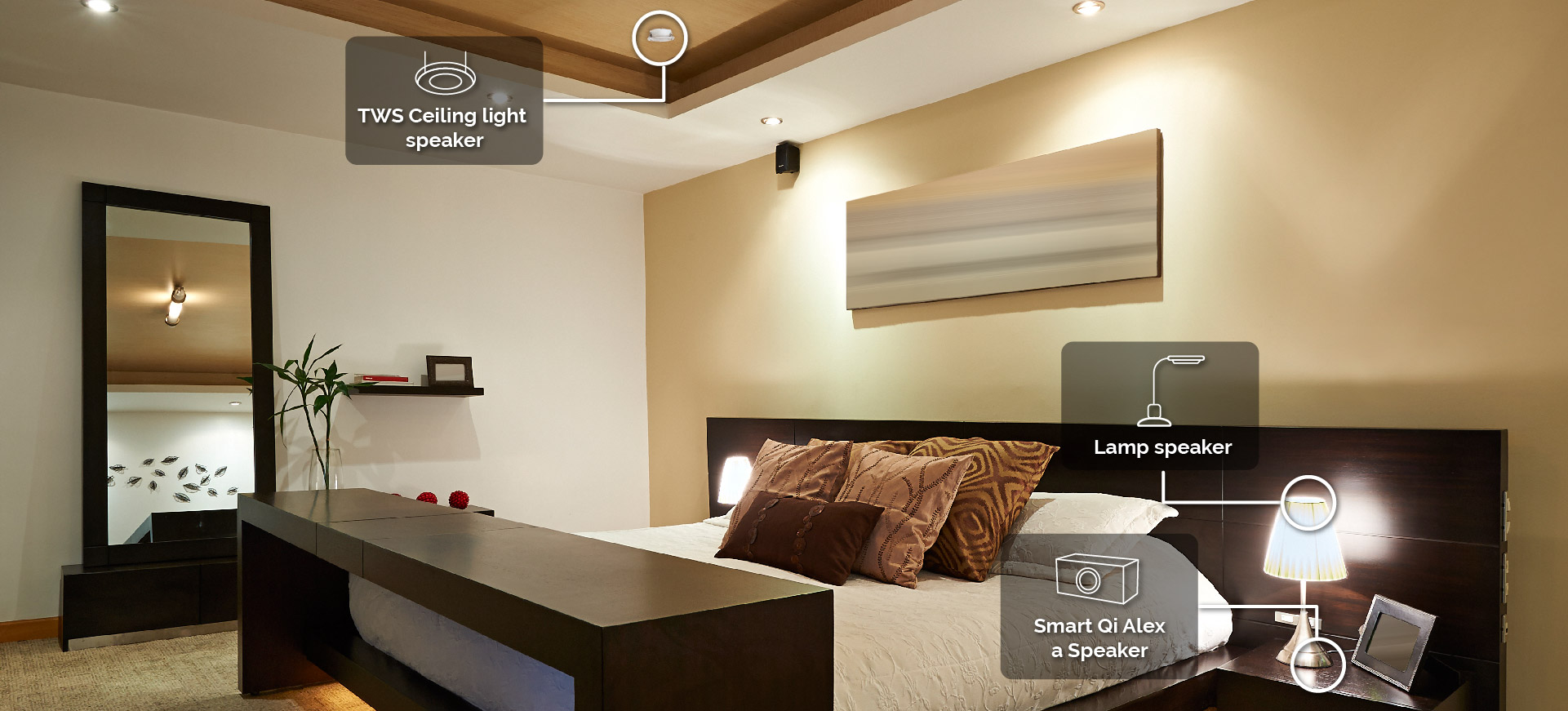

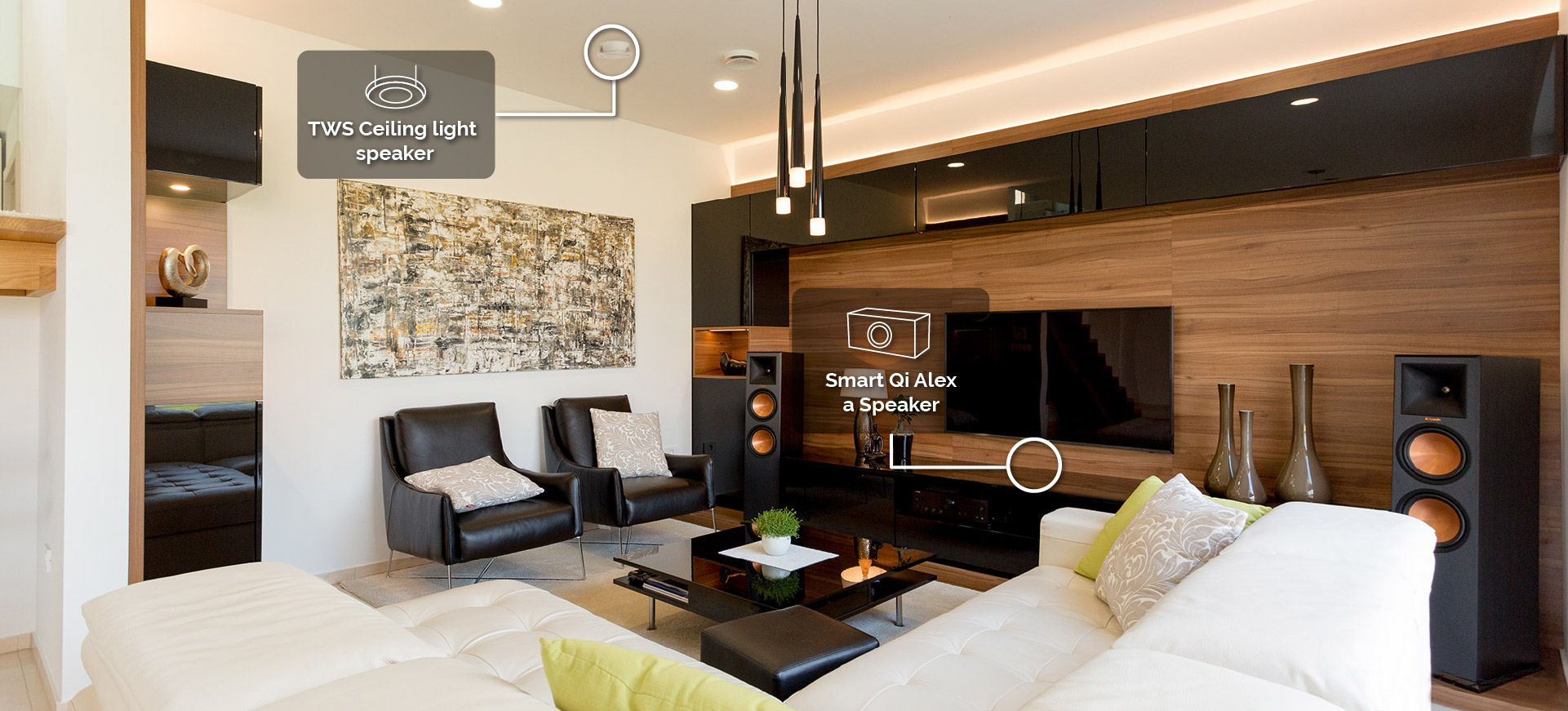

| TW Ceiling Light Speaker | |
|---|---|
| Features | Unique enclosure structure design to create optimal sound performance TWS pairing system With APP to control light and music features Easy to install and set up IPX4 |
| Specifications | Bluetooth 5.0 Output power : 8W x 2 Driver size : 1.75" x 2.4ohm External power supply Power consumption : 220 - 240V, 50/60Hz Dproduct dimension : 200mm x 200mm x 75mm Product dimension (with clip) : 216mm x 216mm x 75mm Optional : Aluminum decorating ring |
| Smart Qi Alexa Speaker | |
|---|---|
| Features | Far field voice recognition Qi wireless charging Clock and alarm clock display Touching ring for functional control USB device charging |
| Specifications | Output power : 5W x 2 Driver size : 2" x 2, 8ohm With passive radiator External power supply Power consumption : 100-240V, 50/60Hz Product dimension : 216mm x 106mm x 100mm Optional wooden cabinet |
| Lamp Speakers | |
|---|---|
| Features | TWS paring system Lighting : RGB IPX5 Lighting and acoustic functions for both indoor and outdoor |
| Specifications | Bluetooth version 4.0 Driver : 3" Power : 20W RMS Input : 3.5mm line-in Built-in Rechargeable battery : 7.4V/2200mAh Charging time : 3 Hours Working time : 6 hours with both light and speaker on Dimension (diameter x height) : 260mm x 400mm |
